Pumpkin Lantern: Mischievous Grin

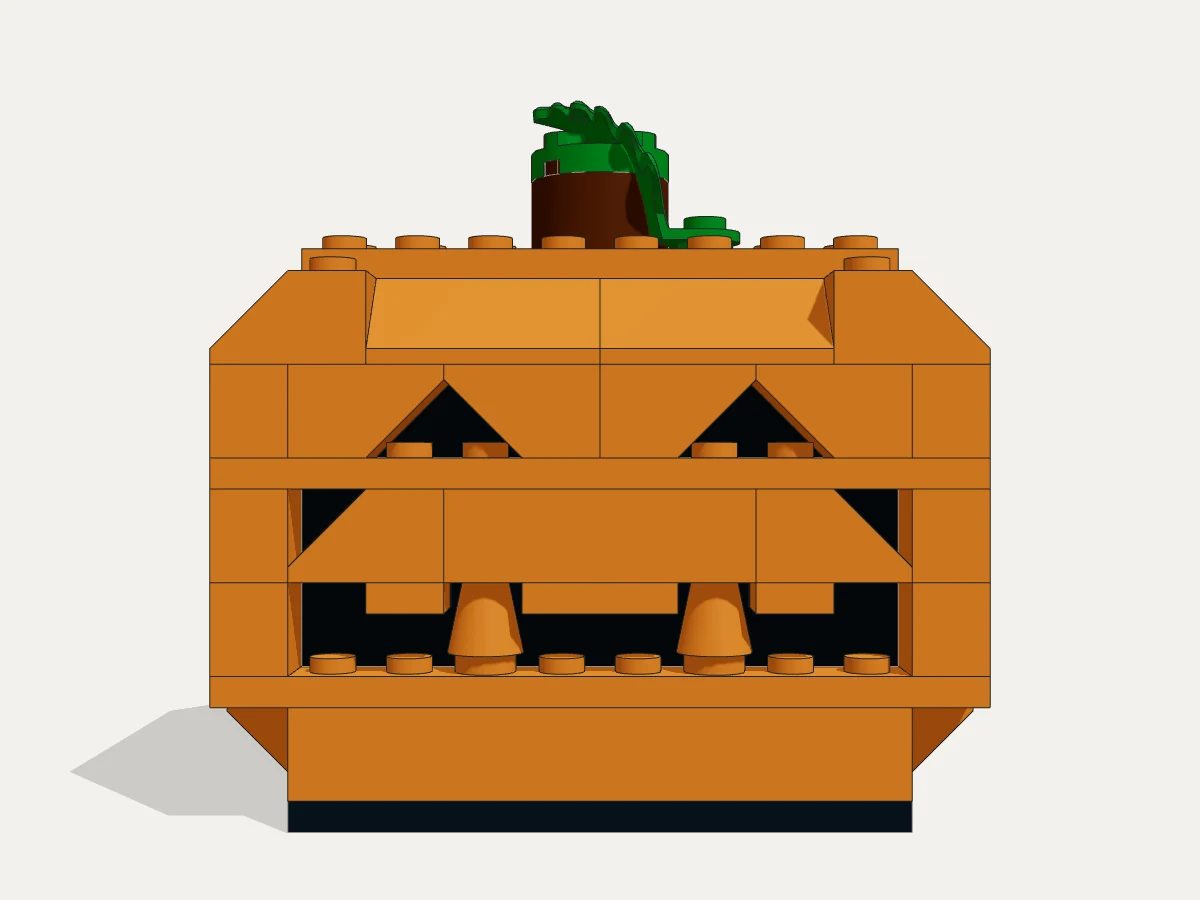

A cute jack-o'-lantern for Halloween. The orange body's lower edges curve inward and its top rounds off with slopes on all four sides, so it looks like a squat pumpkin instead of a box. The front has black ▲ triangle eyes and a zigzag-toothed grin with the corners curled upward. On top sit a short brown-green stem and a serrated leaf curling to the side. The body rests on a small black base.
Size
- Footprint is 10 × 6 studs, about 8.0 × 4.8 cm.
- Height including the leaf tip is about 7.8 cm.
Color palette (4 colors)
- Orange: body, teeth, and the edges of the eyes and mouth.
- Black: base, and the lining of the eyes and mouth.
- Brown: stem.
- Green: stem cap and leaf.
Assembly notes
- Each module sits on the studs of the top row of the one below it and can be removed by pulling upward.
- The full-length 6×10 plates in the middle of floor-1 and floor-2 tie all the wall parts together.
- The hanging upper teeth of floor-2 attach under their own upper-lip parts. When the module is installed, these teeth drop into the mouth cavity of floor-1; they do not collide with the cone teeth on floor-1.
- The mouth and eye rows have vertical joints in the same place, so these rows are not tied together by interlocking. Instead, each row is clamped by a full-length plate above and below.
- Recommended order: base, bottom row, plate, mouth and lower teeth, upper lip, upper teeth, band plate, eyes, slope ring, top plate, stem and leaf.
- PARTS
- 45
- MODULES
- 4
- HEIGHT
- ~7.8 cm
- COLOURS
- 4
- PLATES
- 4
- PRINT TIME
- ~9.5 h
3MF is a ready Bambu Studio project. STL.zip has one folder per colour.
downloads
01 / MODULES
- 01
Base

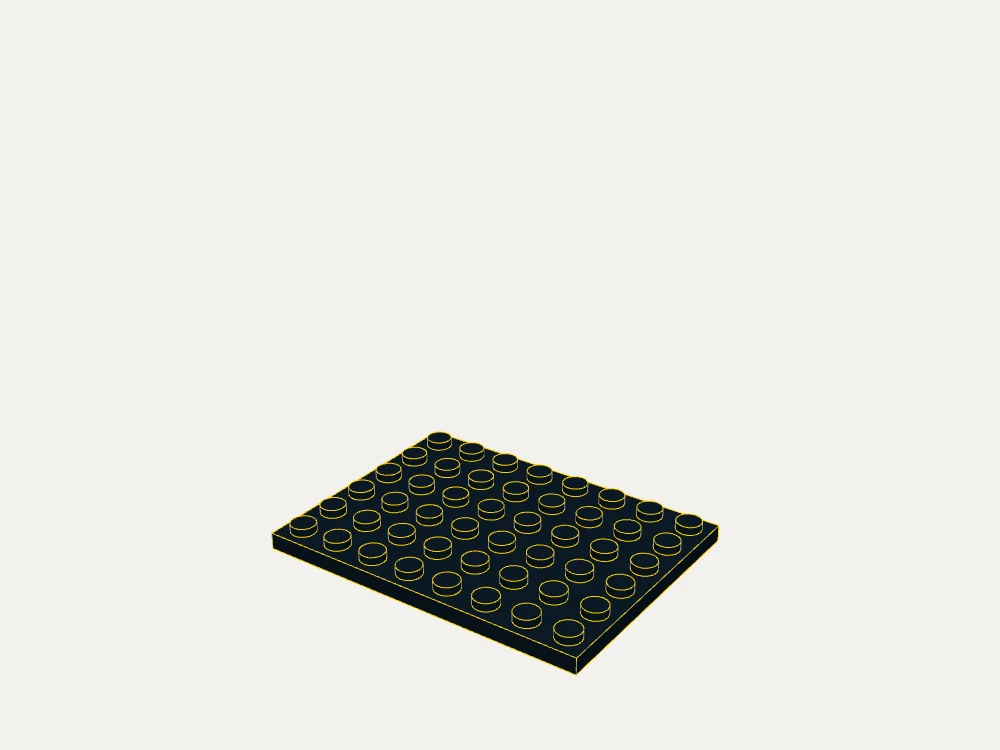

Black 6×8 base plate.
- 02
Floor 1

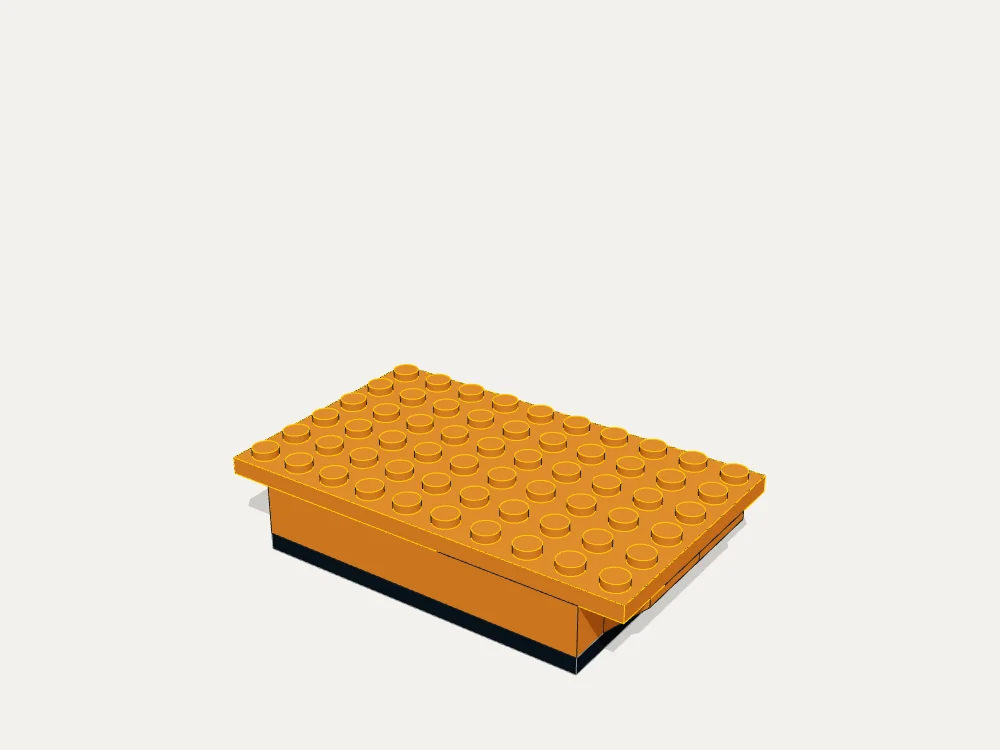

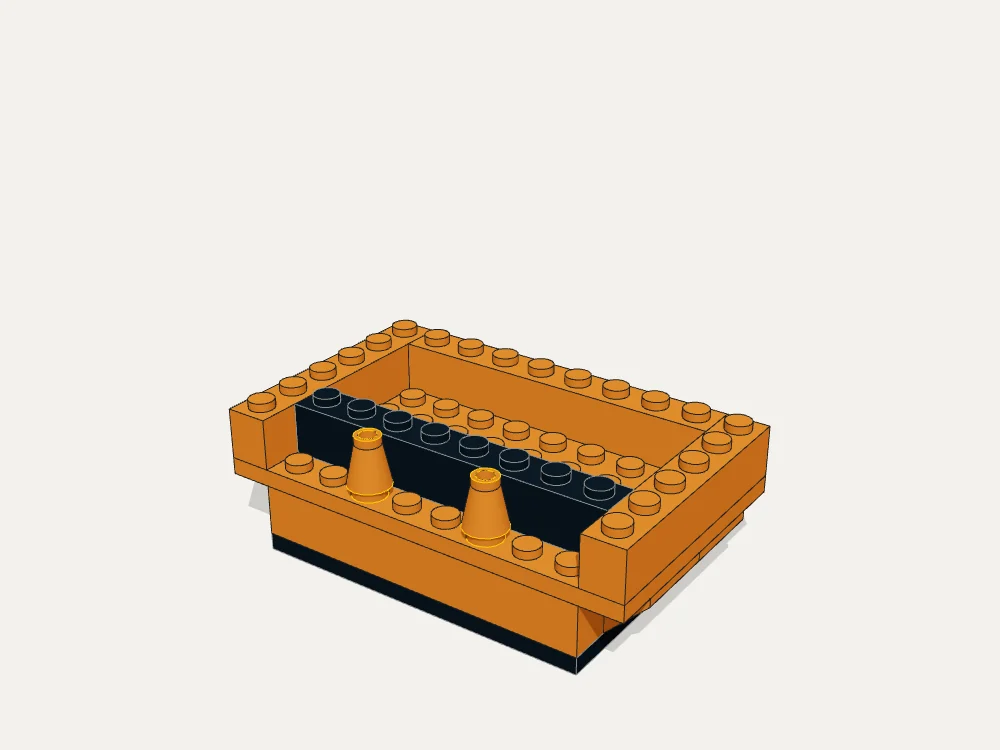

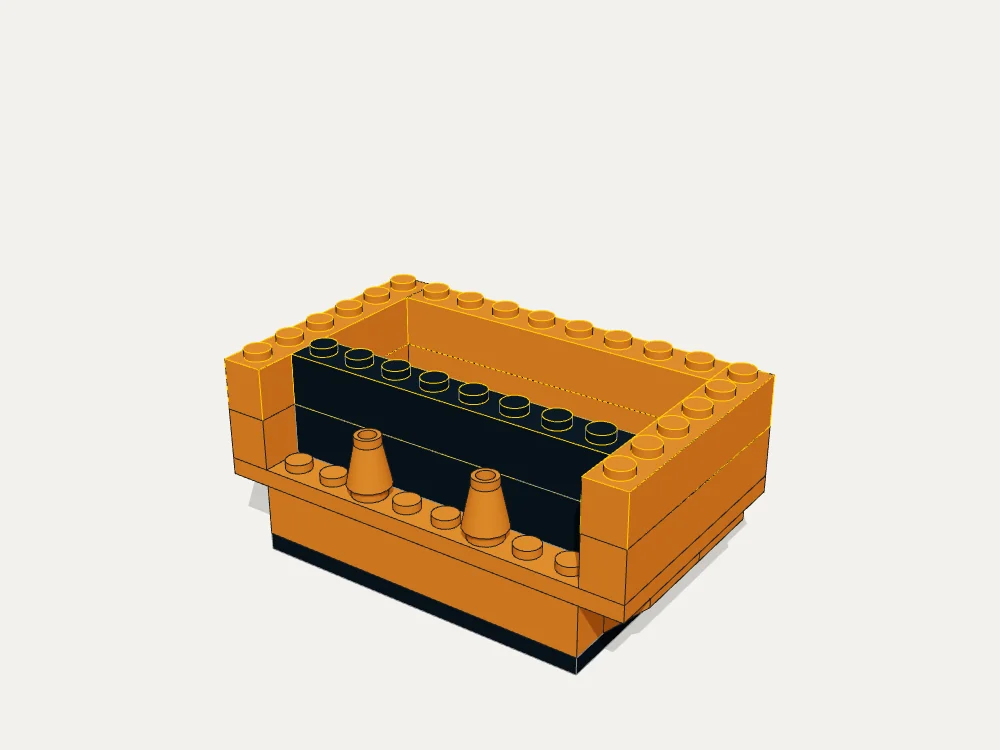

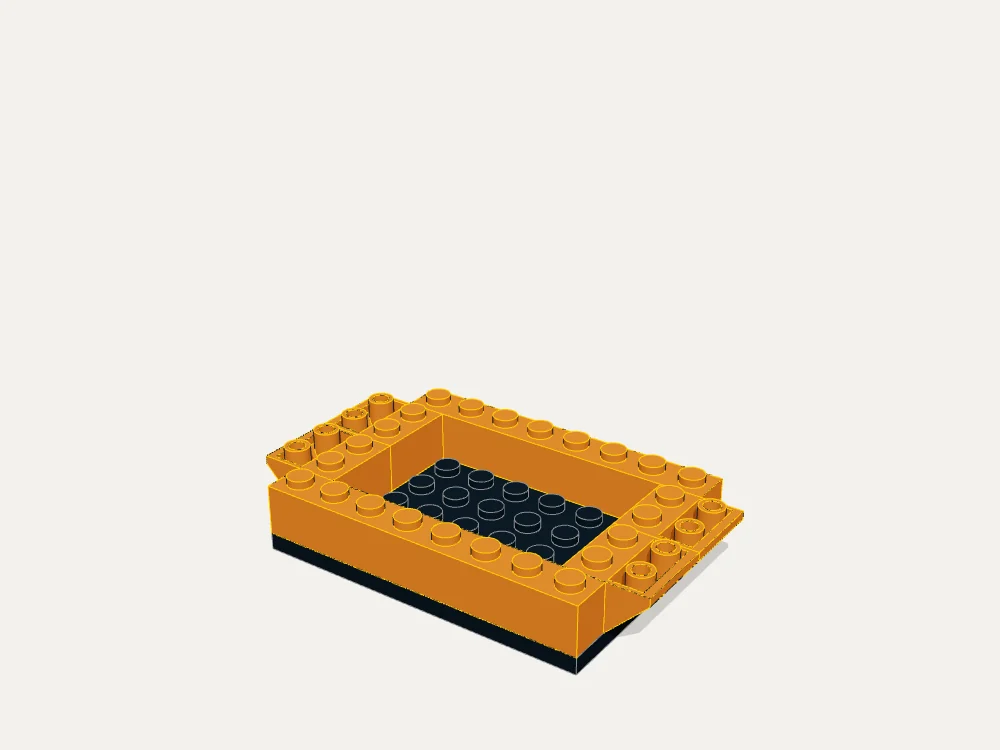

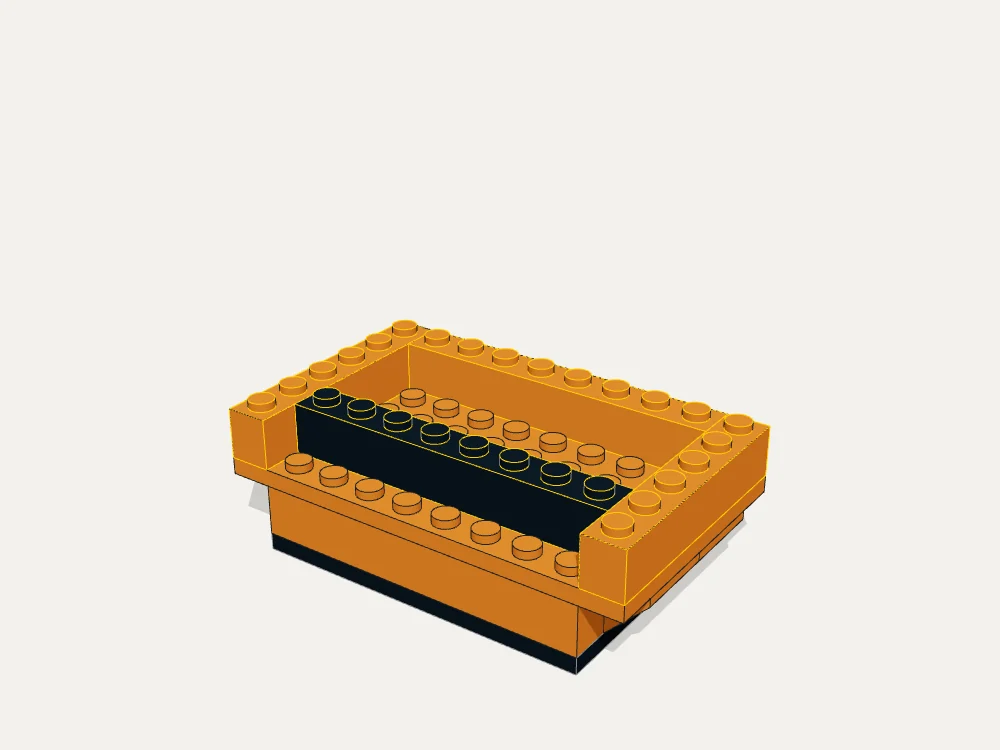

Lower body and mouth): inward-curving bottom row (inverted slopes), connecting 6×10 plate, mouth row (black lining and two pointed cone lower teeth).
- 03
Floor 2

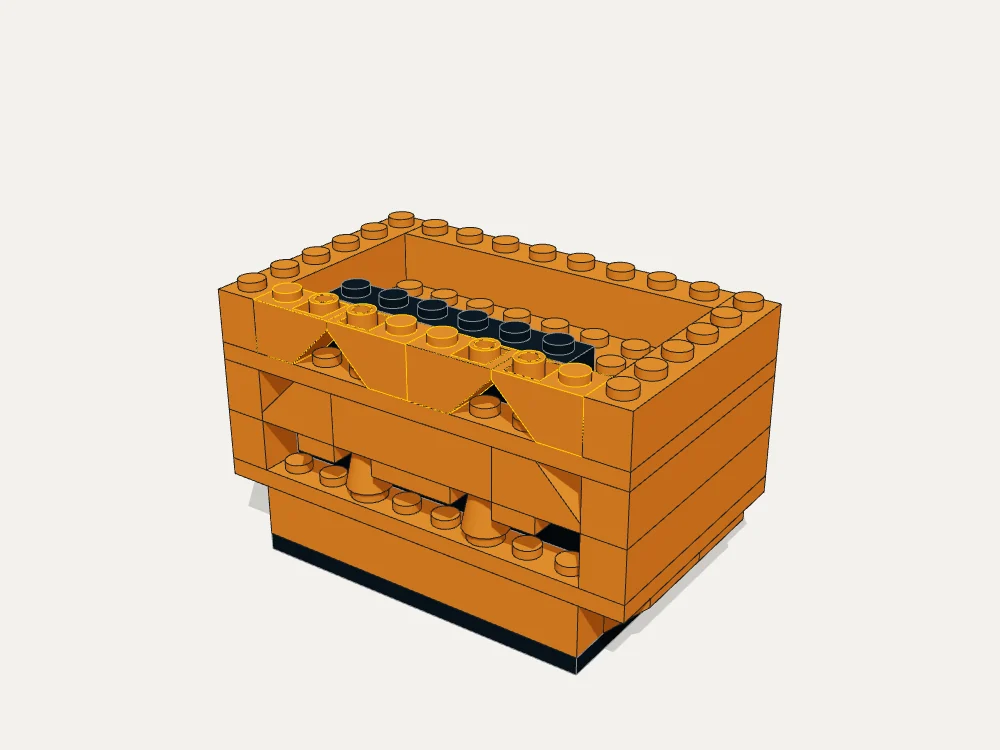

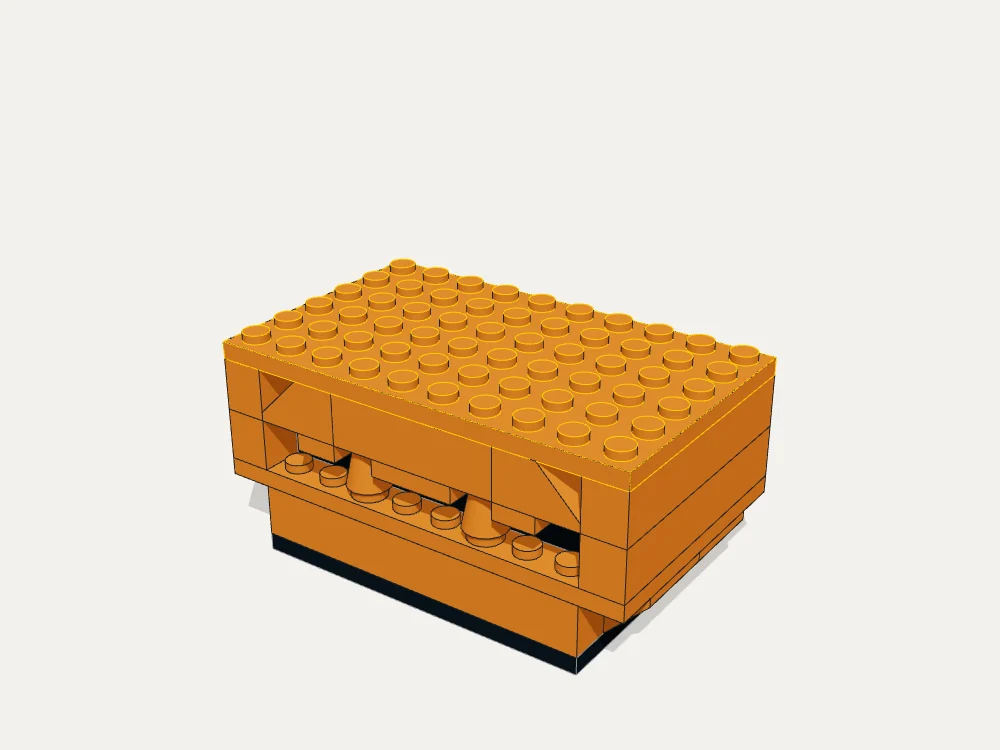

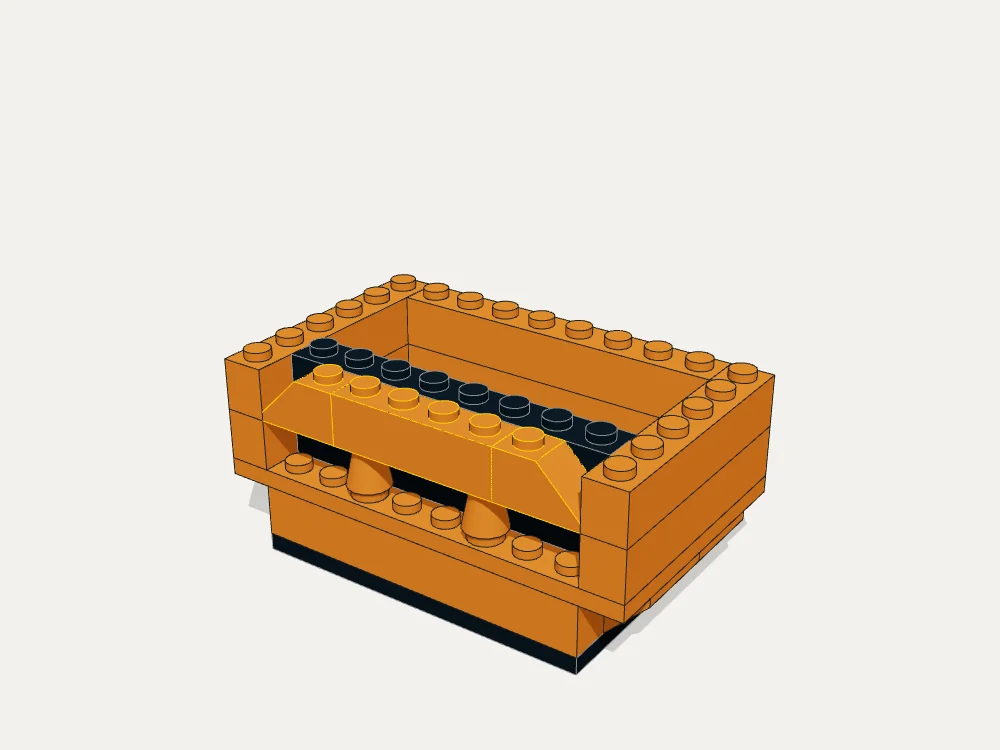

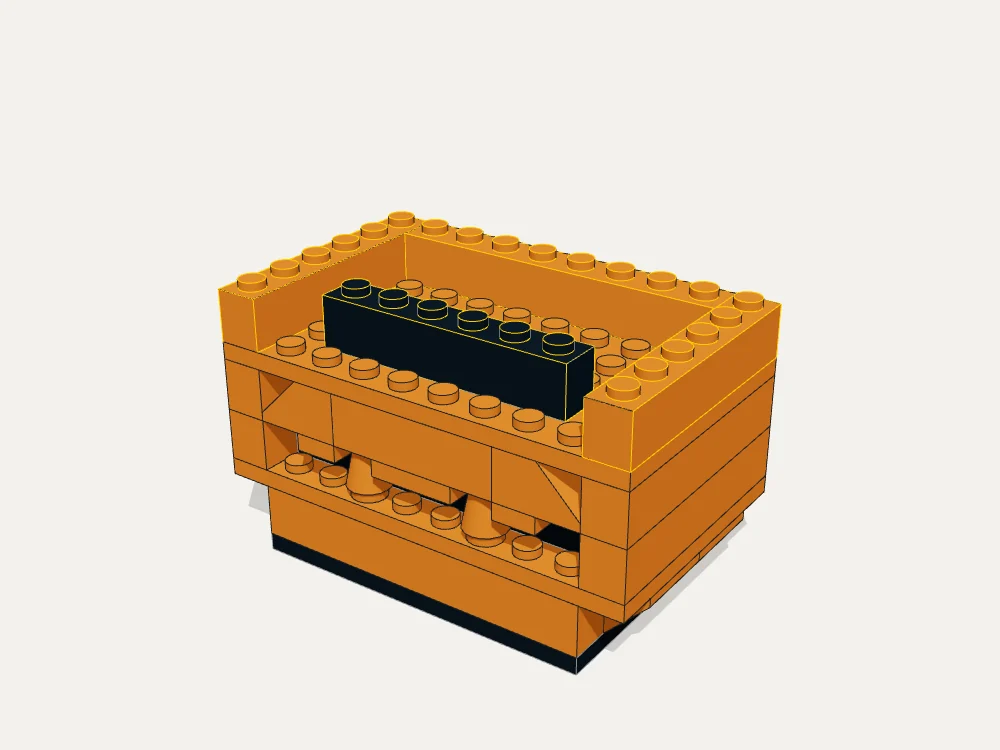

Face): mouth corners and upper lip, three hanging upper teeth, band plate between face sections, eye row.
- 04
Roof

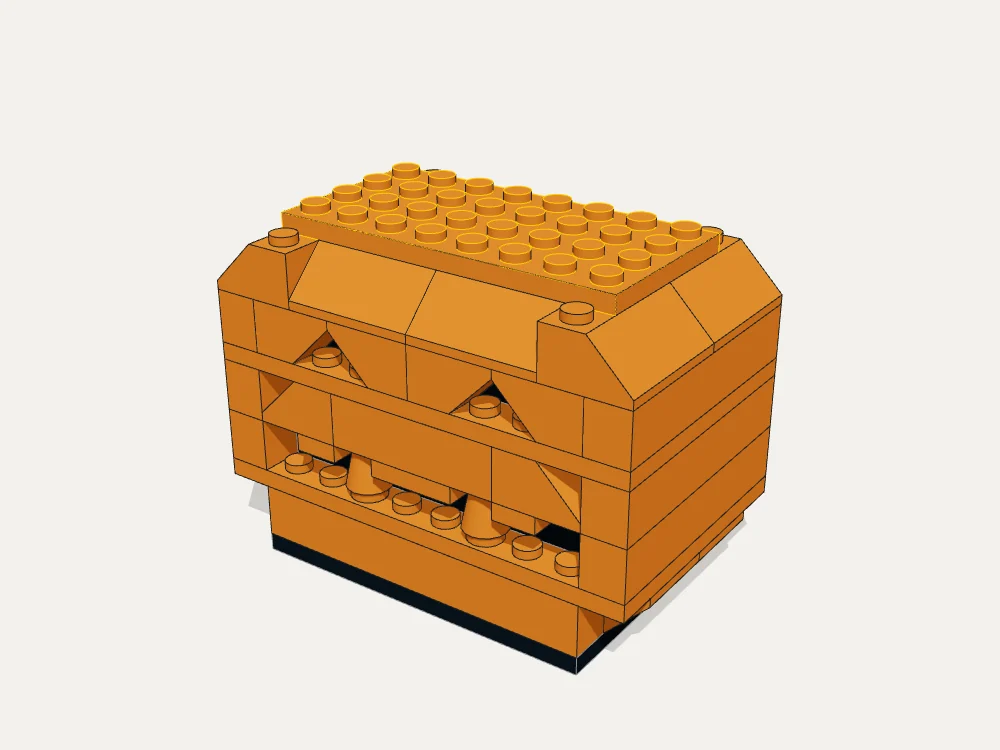

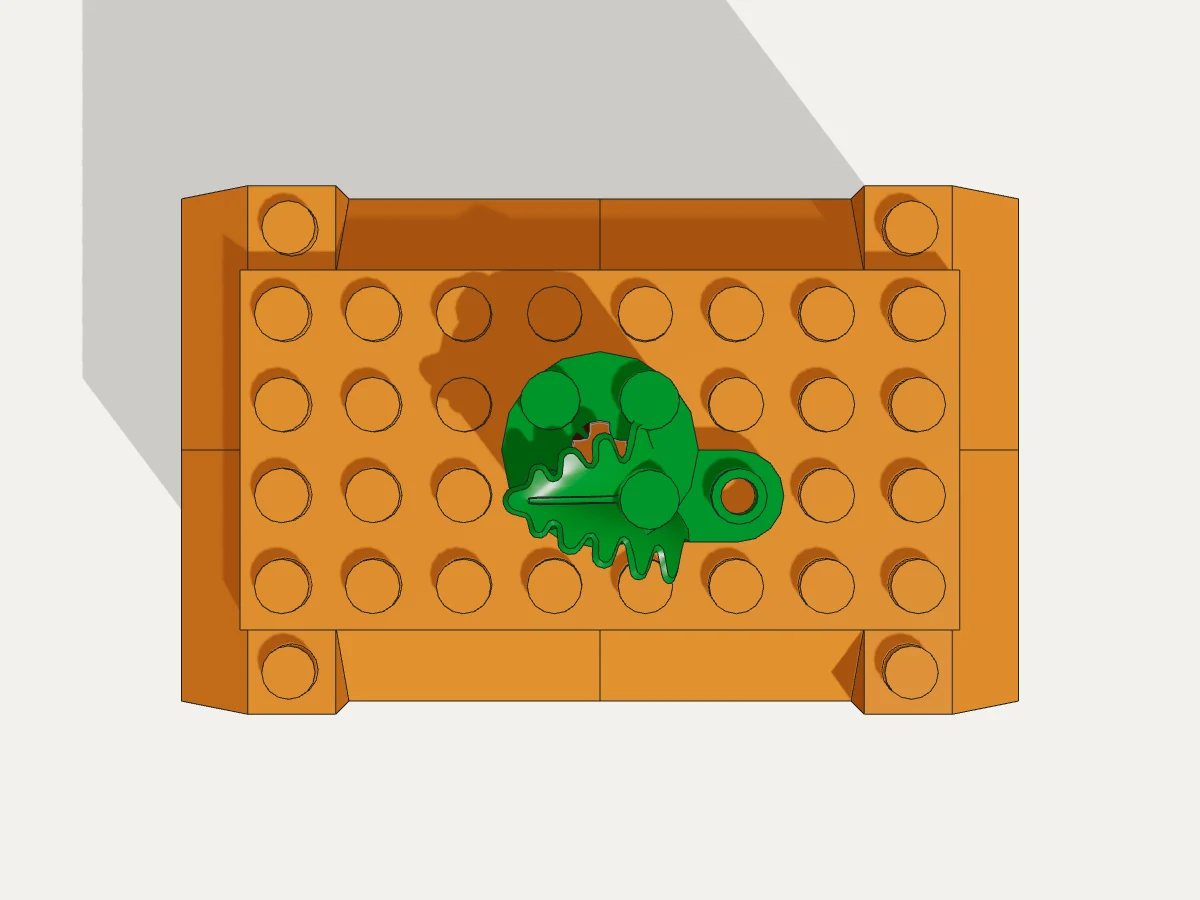

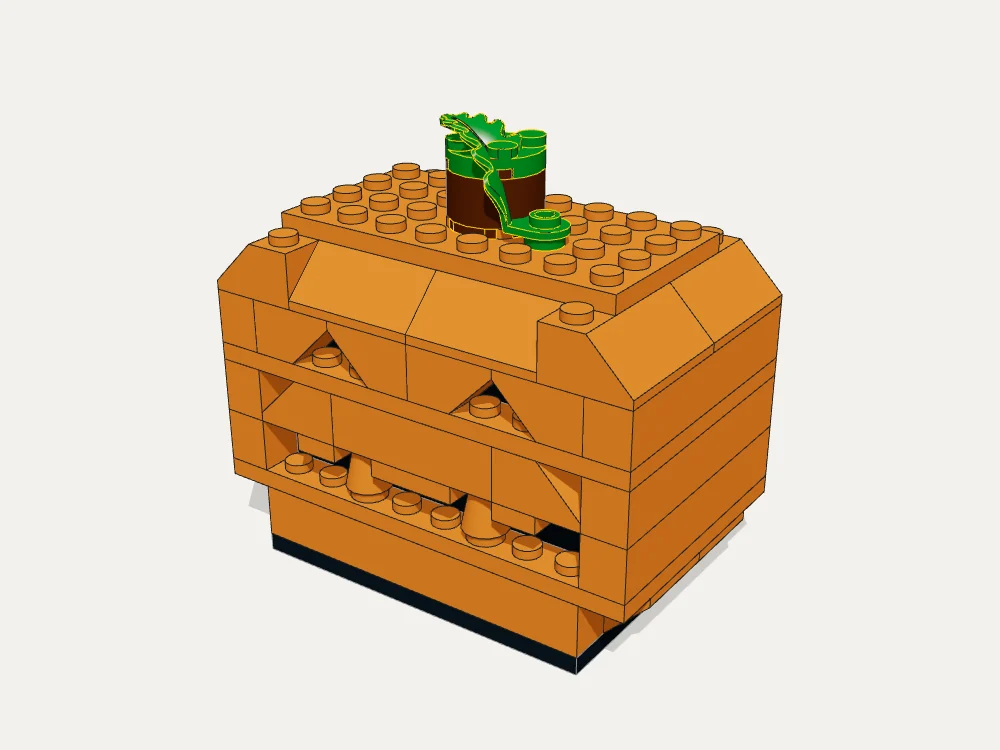

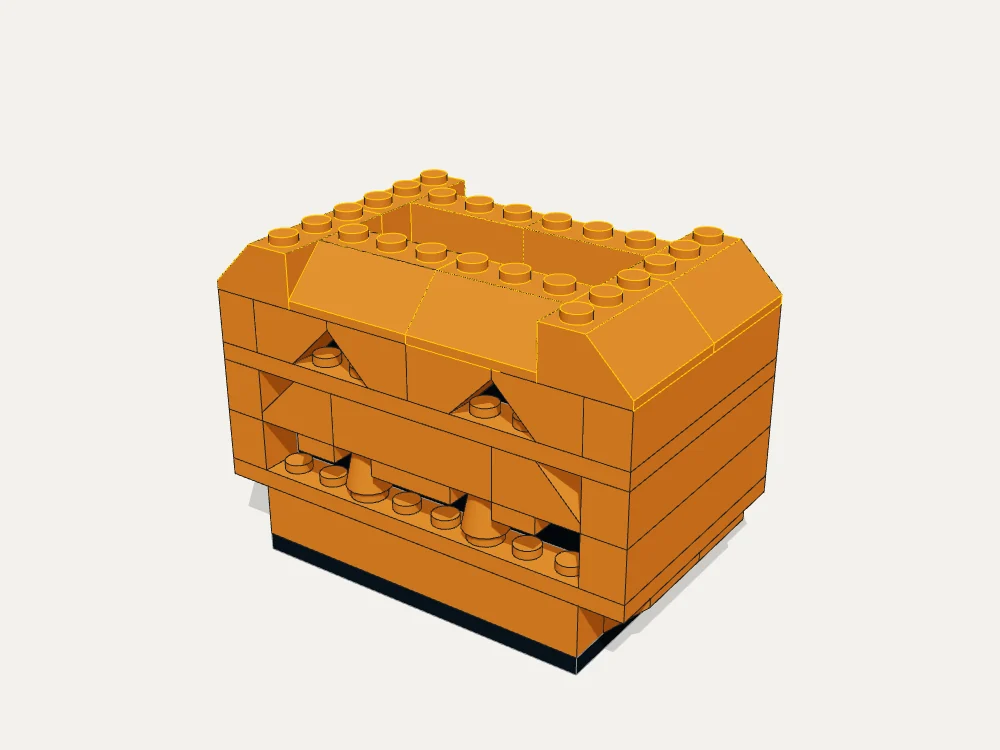

Top): round top ring made of eight 45° slopes, 4×8 top plate, stem, and leaf.
02 / PART LIST
| Part | Colour | Qty |
|---|---|---|
| Brick 2x2 Round without Reinforcement | Reddish Brown | ×1 |
| Brick 1x8 | Black | ×2 |
| Brick 1x6 | Black | ×1 |
| Plate 6x8 | Black | ×1 |
| Brick 1x8 | Orange | ×5 |
| Brick 1x6 | Orange | ×6 |
| Brick 1x4 | Orange | ×1 |
| Plate 1x2 | Orange | ×1 |
| Plate 1x1 | Orange | ×2 |
| Plate 6x10 | Orange | ×2 |
| Plate 4x8 | Orange | ×1 |
| Slope Brick 45 2x3 | Orange | ×8 |
| Slope Brick 45 2x1 | Orange | ×2 |
| Slope Brick 45 2x2 Inverted without Inner Stopper Ring (Obsolete) | Orange | ×4 |
| Slope Brick 45 2x1 Inverted without Inner Stopper Ring | Orange | ×4 |
| Cone 1x1 | Orange | ×2 |
| Plant Serrated Leaf | Green | ×1 |
| Plate 2x2 Round with Reduced Axlehole | Green | ×1 |
